1/0 AWG Red – 250 foot Get Yours

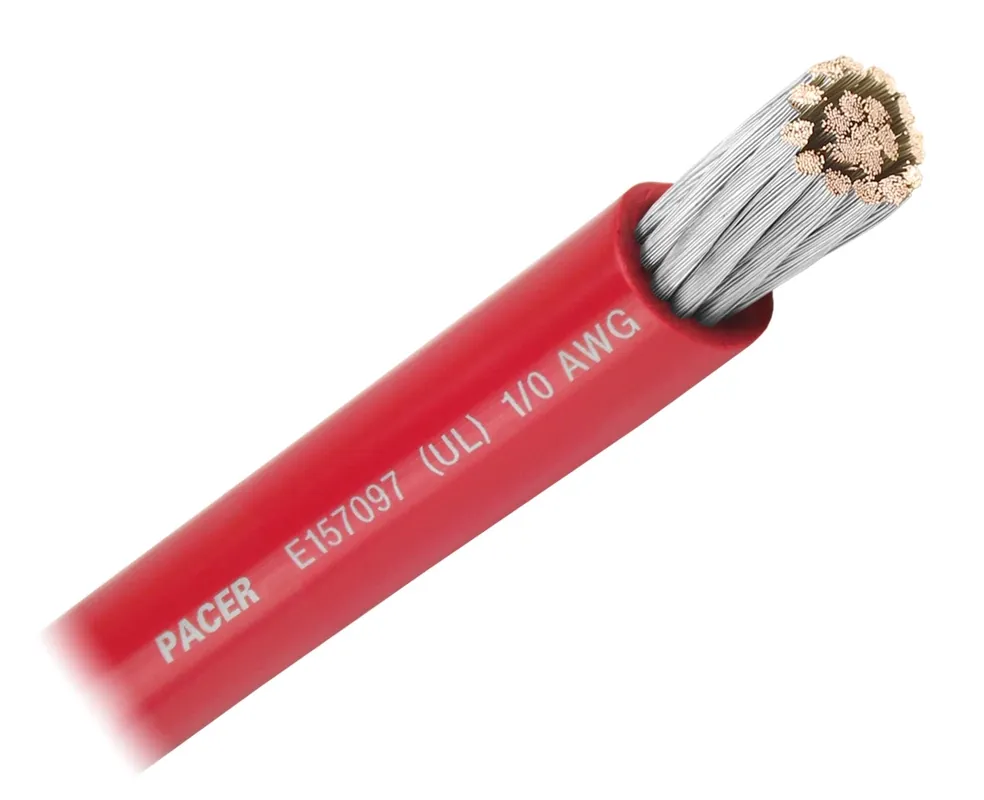

Pacer WUL1/0RD-250 1/0 AWG Marine Battery Cable is a red UL-approved tinned copper battery cable supplied in a 250 ft length, designed for high-amperage marine battery, generator, starter, switch, windlass, inverter, and DC power connections.

Pacer 1/0 AWG Marine Battery Cable is built for demanding marine electrical systems where corrosion resistance, flexibility, and durability are essential. It uses Type III Class K annealed finely stranded tinned copper conductors to help resist corrosion while remaining flexible enough to route through tight spaces, bends, and enclosed compartments.

This red 1/0 AWG cable uses a tough, flexible PVC jacket designed for harsh marine conditions, including vibration, moisture, oil, gasoline, abrasion, flame exposure, acids, and alkalis. Pacer’s marine battery cable spec sheet lists this cable family as UL Standard 1426 BC-5W2 compliant and intended for high-amperage applications such as batteries, generators, starters, grounds, windlasses, inverters, and switches.

Key Features

• 1/0 AWG marine battery cable
• Red insulation
• Supplied in a 250 ft length
• UL-approved marine cable
• Type III Class K annealed finely stranded tinned copper conductor
• Tinned copper helps resist corrosion in marine environments
• Highly flexible for routing through tight spaces
• Tough, flexible PVC jacket
• Easy to strip, bend, and route
• Designed for high-amperage marine equipment
• Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture
• Suitable for battery, generator, starter, switch, windlass, and inverter wiring
• Made in the USA

Technical Specifications

• Brand: Pacer
• SKU: WUL1/0RD-250
• Product Type: Marine battery cable
• Cable Size: 1/0 AWG
• Color: Red
• Length: 250 ft
• Conductor Stranding: 19×56/0.0100
• Conductor Material: Annealed finely stranded tinned copper
• Conductor Standard: ASTM B172 Class K
• Nominal Insulation Thickness: 0.080 in
• Nominal Outside Diameter: 0.600 in
• Nominal Circular Mils: 106400
• Nominal Area: 53.9 mm²
• Approximate Weight: 450 lb/M
• Insulation: Flexible, color-coded PVC
• Insulation Temperature Range: -20°C to 105°C
• Voltage Rating: 600 V
• Temperature Rating: 105°C dry, 75°C wet, 60°C oil
• Standard Put-Ups for WUL1/0: 50 ft, 100 ft, 250 ft
• Print Legend: PACER E157097 (UL) 1/0AWG 600V BC-5W2 105°C DRY, 75°C WET OR AWM 1232/1284 VW-1 OIL RESISTANT I LL102583 CSA TEW 105°C FT1

Applications

• Battery cable connections
• Generator wiring
• Starter wiring
• Switch connections
• Windlass wiring
• Inverter wiring
• High-amperage marine equipment
• Boat electrical system upgrades
• Marine DC power distribution
• Positive battery cable runs where red insulation is preferred

Ideal For

• Boat builders
• Marine electricians
• RV electrical installers
• Boat owners upgrading battery cables
• High-amperage DC wiring projects
• Battery bank, inverter, windlass, generator, and starter circuit installations
• Installations requiring a full 250 ft reel of red 1/0 AWG tinned copper marine cable

System Compatibility

• Suitable for marine battery and high-amperage DC systems
• Suitable for applications requiring 1/0 AWG battery cable
• Suitable for 600 V rated cable applications
• Suitable for installations requiring tinned copper marine-grade conductors
• Compliant with UL Standard 1426 BC-5W2, AWM 1232/1284 for 1–4/0 AWG, CSA TEW, ABYC E-11.15, Coast Guard 33 CFR Part 183, and RoHS requirements listed by Pacer.

Check Before Ordering

• Confirm that 1/0 AWG cable is correct for your amperage, voltage, and cable run length.
• Confirm red is the correct color for your wiring plan.
• Confirm the 250 ft reel length is appropriate for your project.
• Verify that the 0.600 in nominal outside diameter will fit through your conduit, clamps, glands, and bulkhead penetrations.
• Use properly sized marine-rated lugs, heat shrink, terminals, and circuit protection.
• Follow applicable ABYC, UL, Coast Guard, and local electrical requirements.
• Use the correct crimping tools and installation practices for large battery cable terminations.
