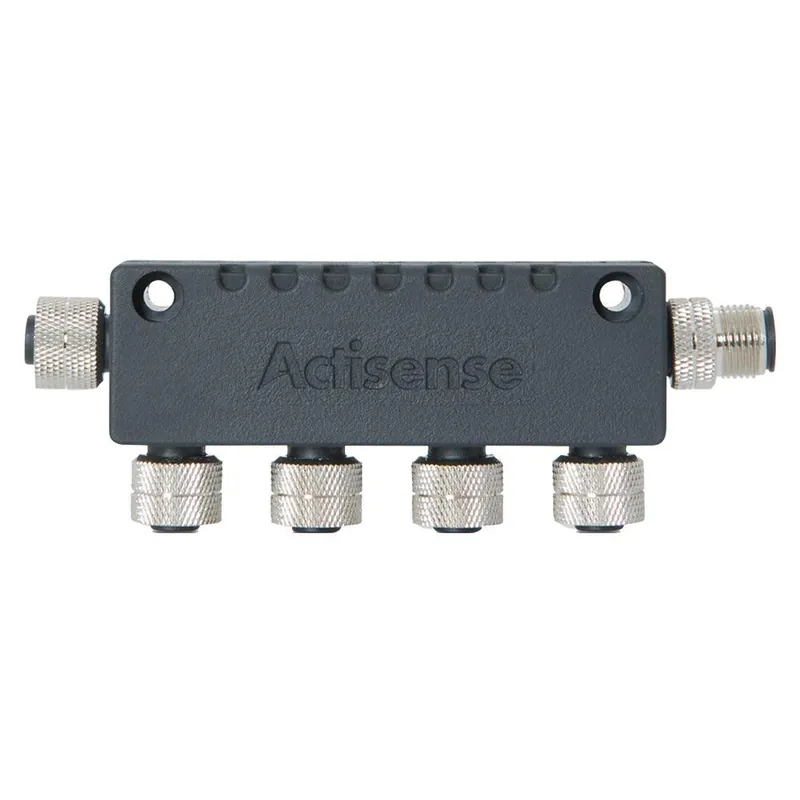

Brand New Actisense N2K Micro 4 Way T-Piece

N2K Micro 4 Way T-Piece

The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces, and costs less than four.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Features:

• NMEA 2000 Approved
• RoHS Compliant

Specifications:

• Rated Current: 4A
• Rated Voltage: 60V DC
• Male Contact: Brass, gold plated
• Female Contact: Phosphor bronze, gold plated
• Contact Carrier: PA66 (30% Glass filled), black
• Contact Polarization: Standard M12 -“A”- polarization
• Mating Thread: M12
• Screw Cap: Brass, nickel plated
• O-Ring Seal: Rubber, Black
• Housing: TPU, flame retardant to UL94V-0, Halogen Free
• Internal Housing Shield: Copper Foil
• Weight: 105g
• Protection: IP67 (when mated)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C

Manufacturer : Actisense
Manufacturer Part No: A2K-4WT
