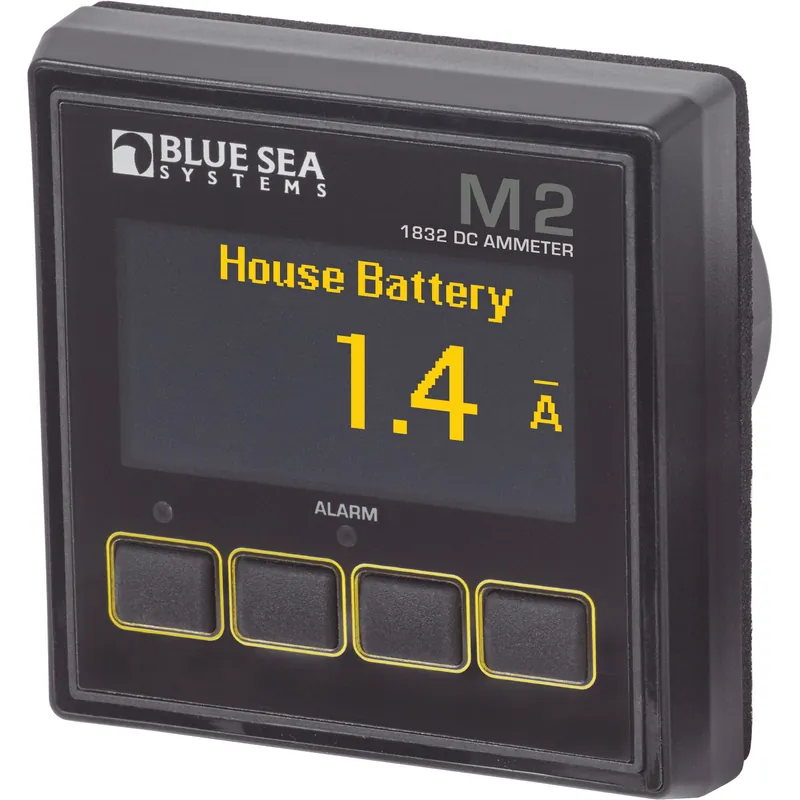

Buy Online M2 DC Digital Ammeter

OLED digital meter measures & displays the amperage of up to 2 circuits of DC electrical systems.

• Blue Sea M2 DC ammeter monitor
• Monitorsthe current of 2 DC circuits
• Auto-dimming, bright organic LED display is easy to read
• Supports programmable shunt ratios
• 80dB alarm alerts to high current, high voltage, low voltage, or low battery conditions
• -500 to 500A current range
• Includes 8255 DC shunt
• Isolated 500mA MOSFET relay can be used to control external circuits based on value measured by M2 meter
• 1.1 in. x 2.17 in. display size
• 3.24 in. x 3.24 in. overall dimensions
• 0.3 – 1.00 watts monitor power consumption range depending on screen resolution, display brightness, etc.
• Surface mount, flat panel mount, or 360 Panel mount using P/N 1525 (sold separately)
• IP66 rated monitor face – protected against powerful water jets when installed according to instructions
