Sale!
Eaton SMART5000XFMRXL - SMART5000XFMRXL Limited Offer
Home / Eaton / Eaton SMART5000XFMRXL – SMART5000XFMRXL Limited Offer

Eaton SMART5000XFMRXL – SMART5000XFMRXL Limited Offer

Original price was: $6,321.00.Current price is: $2,528.40.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0034611 Category:
Share

Eaton SMART5000XFMRXL – SMART5000XFMRXL

Trionics Distributor of Tripp Lite By Eaton,

MPN: SMART5000XFMRXL

Tech SpecsSpecifications

Manufacturer Part Number

 SMART5000XFMRXL

Brand Name

 Tripp Lite

Product Line

 SmartPro

Product Model

 SMART5000XFMRXL

Product Name

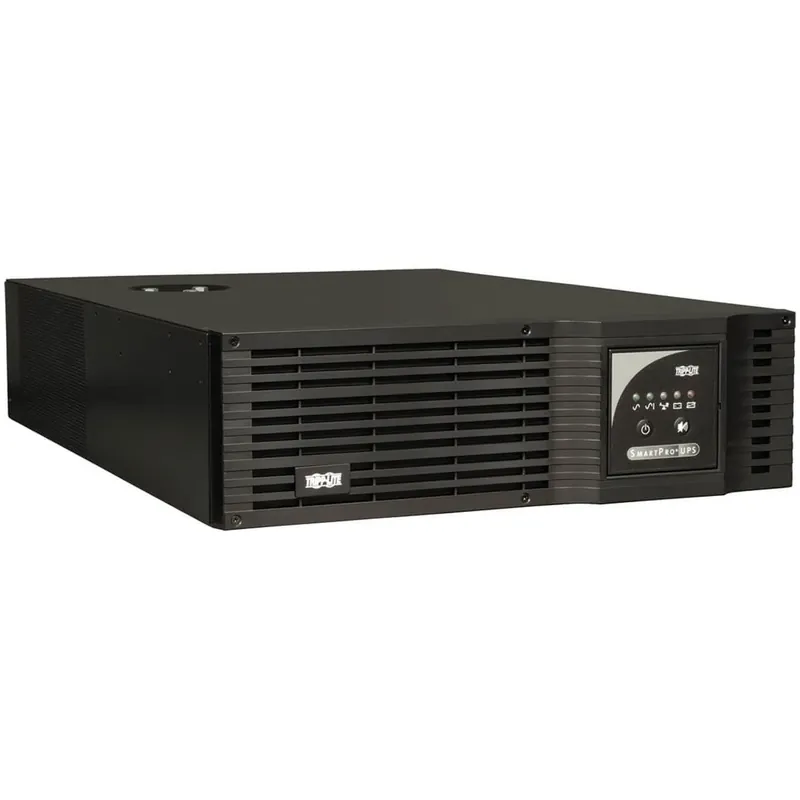

 SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS

Marketing Information

Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.

Product Type

 Line-interactive UPS

Technical Information

Plug/Connector Type

 NEMA L6-30P

Receptacle Type
  • NEMA L6-30R
  • NEMA L6-20R
  • NEMA 5-15/20R

Receptacle Detail
  • 1 x NEMA L6-30R
  • 2 x NEMA L6-20R
  • 8 x NEMA 5-15/20R

Emergency Power OFF

 Yes

Transfer Time

 4 ms

Power Description

Load Capacity

 5000 VA/3750 W

Input Voltage

 208 V AC

Output Voltage

 208 V AC

Input Current

 27 A

Management

Network Management

 SNMP Manageable

Interfaces/Ports

Serial Port

 Yes

Modem (RJ-11)

 Yes

USB

 Yes

Total Number of Expansion Slots

 1

Battery Information

Battery Characteristics

 Maintenance-free

Battery Chemistry

 Lead Acid

Backup/Run Time (Full Load)

 8.50 Minute

Backup/Run Time (Half Load)

 20 Minute

Typical Battery Recharge Time

 4 Hour

Hot Swappable

 Yes

Physical Characteristics

Height

 5.3″

Width

 17.5″

Depth

 25″

Rack Height

 3U

Form Factor

 Tower

Weight (Approximate)

 143.30 lb

Miscellaneous

Package Contents
  • SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS
  • SMART 5000XFMRXL UPS System
  • PowerAlert Software and Cabling
  • Mounting hardware for 4-post rackmount installation
  • Warranty information
  • Instruction manual

Additional Information
  • Line Mode: Sine wave line voltage 208V & 120V (+/-10%)
  • Battery Mode: 208V & 120V (+/-5%)

Certifications & Standards
  • Tested to UL1778 (USA)
  • CSA C22.2 No. 107.3 (Canada)
  • NOM (Mexico)
  • Class A (emissions)

Software Included

 PowerAlert UPS Monitoring Software

Country of Origin

 China

TAA Compliant

 Yes

Warranty

Limited Warranty

 3 Year
