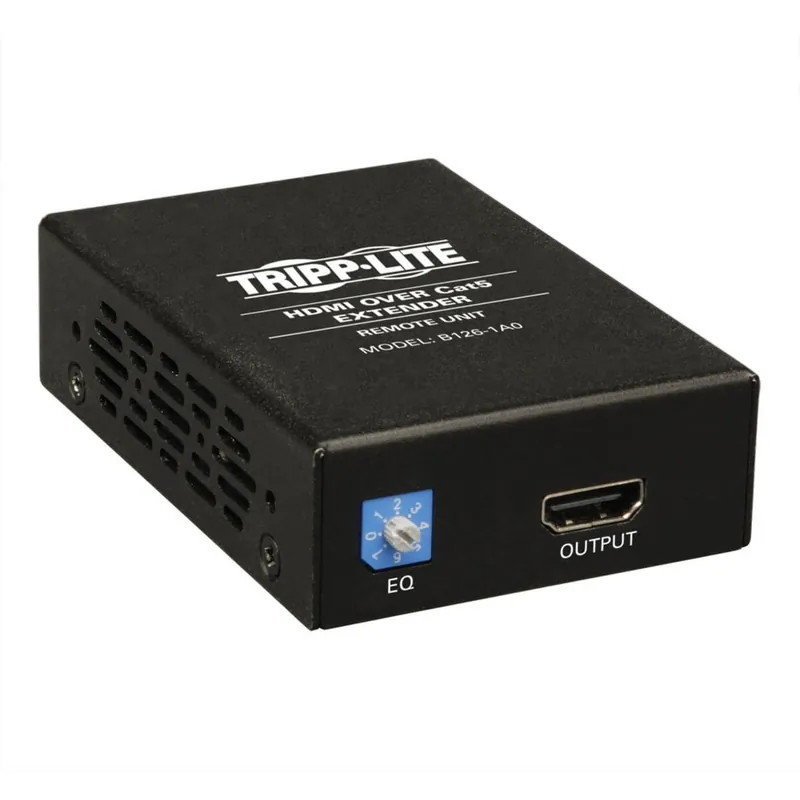

Final Sale Eaton B126-1A0 – HDMI/CAT5 XTNDR, ACTV RMT UNIT

Manufacturer Part Number

Brand Name

Product Model

Product Name

Marketing Information

The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite’s N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Product Type

Connectivity Technology

Number of Input Devices Supported

Number of Output Devices Supported

Maximum Operating Distance

Network (RJ-45)

HDMI Out

Number of Network (RJ-45) Ports

Number of HDMI Outputs

Media Type Supported

Twisted Pair Cable Standard

Product Color

Receiver Height

Receiver Width

Receiver Depth

Form Factor

Package Contents

• B126-1A0 Video Console
• Screwdriver for Adjustment of Equalization
• Mounting Hardware
• External Power Supply
• Owner’s manual

Environmental Certification

Country of Origin

TAA Compliant

Limited Warranty
