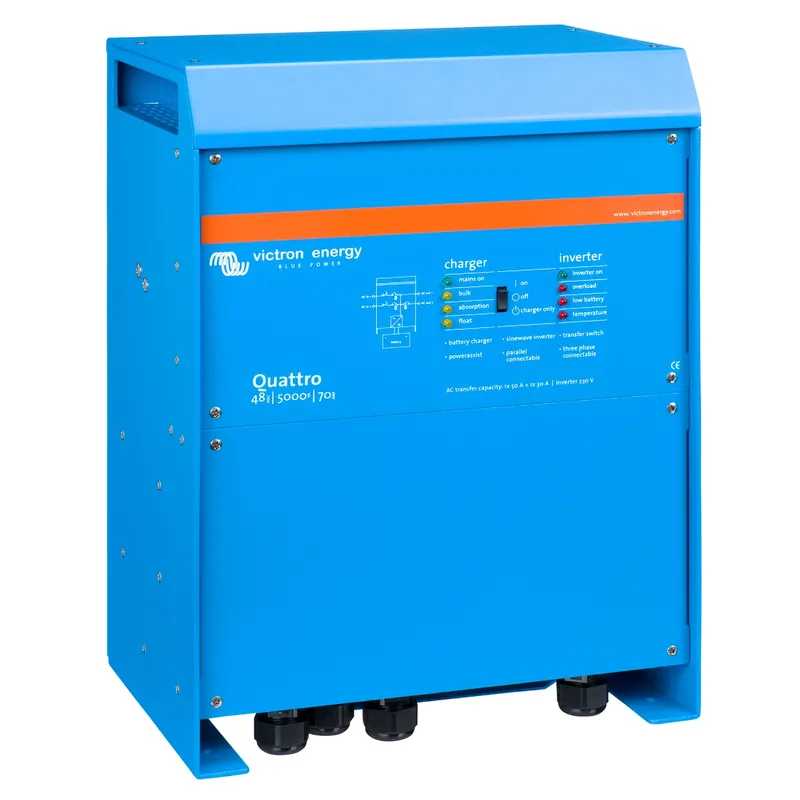

Limited Time Quattro 48/5000/70-100/100 120 volt (UL) Inverter/Charger

The Quattro 48/5000 is a combined inverter and charger that can accept two AC inputs, automatically connect to the active source, and offers features such as true sine wave output, adaptive charging, hybrid PowerAssist, and advanced system integration for parallel, three-phase, or split-phase operation.

The Victron Quattro 48/5000/70-100/100 120V is a lithium-compatible inverter/charger designed for demanding AC power systems using a 48V battery bank. It combines inverter power, battery charging, and automatic AC source transfer in one unit, making it suitable for systems that use shore power, generator power, grid power, solar, or other alternative energy sources.

With two AC inputs, the Quattro can connect to two independent AC sources, such as public grid and generator, and automatically connect to the active source. Its main AC output provides no-break transfer, taking over connected loads in less than 20 milliseconds when shore, grid, or generator power is disconnected.

PowerControl helps prevent overload of limited shore, generator, or grid power by using only available surplus current for battery charging. PowerAssist can supplement limited AC input power with battery power during peak demand, then recharge the batteries when the load decreases.

Key Features

• 48V inverter/charger for 120V AC systems
• 5000 VA continuous inverter rating at 25°C
• 4000W continuous output at 25°C
• 3700W continuous output at 40°C
• 3000W continuous output at 65°C
• 10000W peak power
• 70A house battery charging current
• Two AC inputs with automatic active-source selection
• Integrated transfer switch
• No-break main AC output transfer in less than 20 milliseconds
• Second AC output for loads that should only run when external AC power is available
• PowerControl for managing limited generator, shore, or grid power
• PowerAssist for boosting limited AC source capacity with battery power
• Compatible with lithium ion batteries
• Supports off-grid, grid-connected PV, and alternative energy systems
• Can be configured for split-phase, three-phase, and parallel systems
• VE.Bus communication for system integration, monitoring, and multi-unit configurations
• Remote monitoring and control available through Cerbo GX or other GX devices
• VRM portal support for remote system data, settings, and alarm notifications

Technical Specifications

• Manufacturer: Victron Energy
• Product type: Inverter/charger
• Model: Quattro 48/5000/70-100/100 120V
• Input battery voltage range: 38V to 66V
• AC input quantity: 2
• AC input voltage range: 90V to 140V AC
• AC input frequency: 55Hz to 65Hz
• Power factor: 1
• Maximum feed-through current: 2 x 100A
• Inverter output voltage: 120V AC ±2%
• Inverter output frequency: 60Hz ±0.1%
• Continuous output power at 25°C: 5000 VA
• Continuous output power at 25°C: 4000W
• Continuous output power at 40°C: 3700W
• Continuous output power at 65°C: 3000W
• Peak power: 10000W
• Maximum efficiency: 95%
• Zero-load power: 35W
• Zero-load power in AES mode: 30W
• Zero-load power in Search mode: 15W
• Absorption charge voltage: 57.6V DC
• Float charge voltage: 55.2V DC
• Storage mode voltage: 52.8V DC
• House battery charge current: 70A
• Battery temperature sensor: Yes
• Auxiliary output: 50A
• Programmable relay: 3x
• General purpose communication ports: 2x
• Remote on/off: Yes
• Operating temperature: -40°C to +65°C
• Humidity: Maximum 95%, non-condensing
• Enclosure material and color: Aluminum, blue RAL 5012
• Protection category: IP21
• Battery connection: Four M8 bolts, 2 positive and 2 negative
• 120V AC connection: M6 bolts
• Weight: 66 lb / 30 kg
• Dimensions: 17.5 x 13.0 x 9.6 in / 444 x 328 x 240 mm
• Safety standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, UL 1741
• Emission and immunity standards: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3

Applications

• Off-grid power systems
• Grid-connected backup power systems
• Solar and alternative energy systems
• Marine electrical systems
• RV and mobile power systems
• Generator-supported battery systems
• Shore power systems
• Split-phase or three-phase power systems when configured with compatible additional units

Ideal For

• Buyers needing a 48V inverter/charger for 120V AC loads
• Systems with two AC power sources, such as grid and generator
• Installations that require fast transfer from AC input to battery inverter power
• Power systems with limited shore, generator, or grid capacity
• Renewable energy systems requiring inverter/charger integration
• Installers building expandable Victron VE.Bus systems

Protection Features

• Output short circuit protection
• Overload protection
• Battery voltage too high protection
• Battery voltage too low protection
• Temperature too high protection
• 120V AC on inverter output protection
• Input voltage ripple too high protection

System Compatibility

• Compatible with 48V battery systems
• Lithium ion battery compatible
• Supports VE.Bus communication
• Supports remote monitoring and control with Cerbo GX or other GX devices
• Supports VRM remote monitoring when used with compatible GX hardware
• Supports configuration with DIP switch settings for stand-alone applications
• Supports VE.Bus Quick Configure and VE.Bus System Configurator for parallel and three-phase applications
• Supports Assistants software for off-grid, grid-interactive, self-consumption, grid-tie inverter, and MPPT solar charger applications
• Compatible monitoring and control options include Battery Monitor, Multi Control Panel, Cerbo GX or other GX devices, smartphone or tablet with Bluetooth Smart, laptop, or computer via USB or RS232

Check Before Ordering

• Confirm your system uses a 48V battery bank.
• Confirm your AC loads are compatible with 120V AC output.
• Confirm your required continuous and peak load demand does not exceed the inverter ratings.
• Confirm battery capacity, cabling, overcurrent protection, and installation design are appropriate for a 5000 VA inverter/charger.
• Confirm shore, grid, or generator input current settings are configured correctly to avoid overload.
• Confirm whether the second AC output is suitable for loads that should only operate when external AC power is available.
• Confirm whether your installation requires split-phase, three-phase, or parallel operation and plan for the correct number of units and configuration tools.
• Confirm enclosure location is suitable for an IP21-rated device and the specified operating temperature and humidity range.
• Confirm monitoring, remote control, and configuration accessories are ordered separately if required.
