Name: Eaton N48M-2L24L-10 - X2 LC/LCDPLX MLTMDE PRLDPNL Direct From Factory
SKU: SK0034936
Price: 1054.40 USD
Availability: InStock

Eaton N48M-2L24L-10 – X2 LC/LCDPLX MLTMDE PRLDPNL

Trionics Distributor of Tripp Lite By Eaton,

MPN: N48M-2L24L-10

Tech SpecsSpecifications

Manufacturer Part Number	N48M-2L24L-10
Brand Name	Tripp Lite
Product Model	N48M-2L24L-10

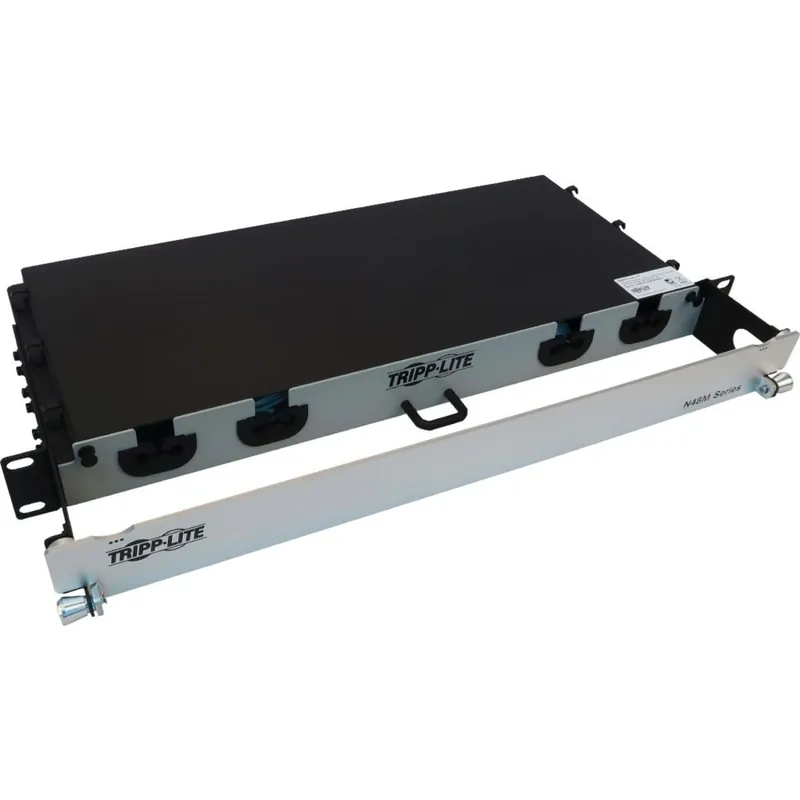

Product Name	N48M-2L24L-10 Preloaded Fiber Panel
Marketing Information	1U panel comes preloaded with spools of multimode fiber cable that allow you to extend the exact length required and store the excess out of sight. Description Preloaded Fiber Panel, 1U – 2x (12x LC/LC Duplex M/M) 24F Trunk Cables, OM4 Multimode, 10 m (32.8 ft.) Features 1U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time All necessary cabling is included with this preloaded fiber panel, coiled inside and ready for immediate use. The aluminum 1U chassis features two 24-fiber LC Duplex multimode trunk cables, both 10 meters (32.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter, allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. The N48M2L24L-10 mounts in just 1U of space in an EIA-standard 19-inch rack.
Product Type	Network Patch Panel

Interfaces/Ports

Number of LC Ports	24
LC Port Type	Duplex

Physical Characteristics

Miscellaneous

Package Contents	N48M-2L24L-10 Preloaded Fiber Panel 2 x LC Duplex to LC Duplex Trunk Cables, 10 m (32.8 ft.) Installation Guide
Additional Information	OVERVIEW Technology Multimode Optical Mode OM4 Panel Cable Number 2 Panel Cable Length (m) 10 Mode Type Multimode Firmware / Software Docs Offset Ports No PHYSICAL Cable Jacket Rating OFNP Cable Outer Diameter (OD) 2.9MM Clad Diameter (micron) 125 Core Diameter (micron) 50 Primary Coating Diameter (micron) 245 Number of Fibers 24 Cable Length (ft.) 32.8 Cable Length (m) 10.00 Cable Length (in.) 393.7 Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC) COMMUNICATIONS Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps Wavelength 1300nm; 850nm Attenuation @ 850NM 3.0dB/KM Attenuation @ 1300NM 1.0dB/KM Insertion Loss 0.20dB
Environmentally Friendly	Yes
Environmental Certification	RoHS REACH
Country of Origin	China
