Instant Buy Eaton PDUV20HVL6-72 – PDUV20HVL6-72

Manufacturer Part Number

Brand Name

Product Model

Product Name

Marketing Information

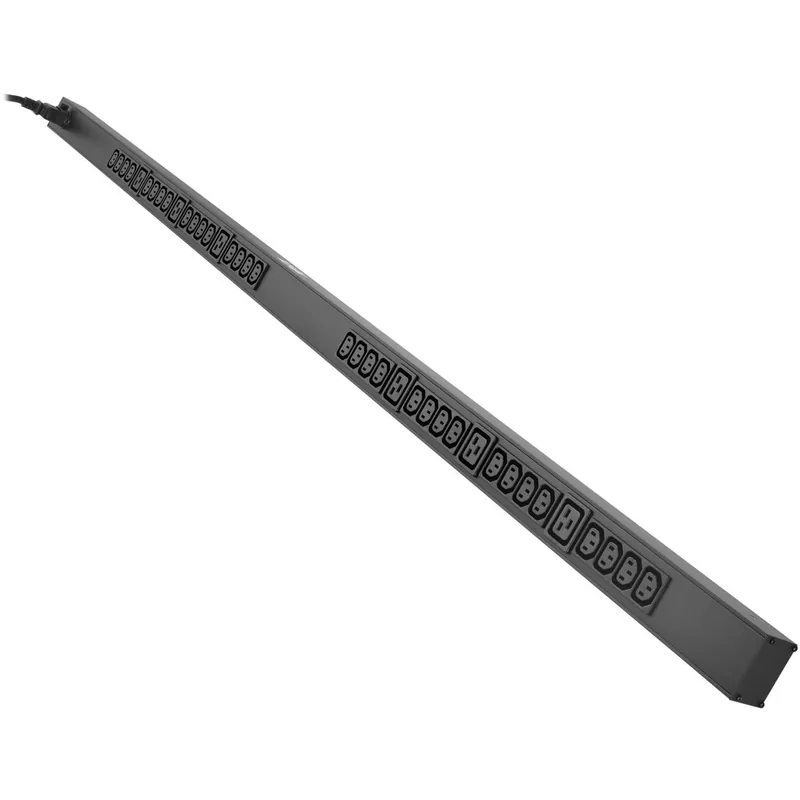

Single-Phase 208/240V PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20HVL6-72 features 32 C13 and six C19 outlets for connecting equipment. A 10-foot cord with NEMA L6-20P input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads. The switchless design helps prevent an accidental shutdown, which could lead to costly downtime.

Versatile Installation Options Give You Plenty of Choices

The 63.75-inch all-metal housing supports 0U vertical mounting in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Included C20 and C14 plug-lock inserts attach to the connected components’ plugs to keep them connected and the devices continuously powered.

Typical Applications

Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

Package Includes

• PDUV20HVL6-72 3.3/3.8kW 208/240V Single-Phase Basic PDU
• (38) Plug-lock inserts
• Mounting hardware
• Owner’s manual

Product Type

PDU Type

Phase

Plug/Connector Type

Receptacle Type

• IEC 60320 C13
• IEC 60320 C19

Receptacle Detail

• 32 x IEC 60320 C13
• 6 x IEC 60320 C19

Protection Type

Input Voltage

Output Voltage

• 200 V AC
• 208 V AC
• 240 V AC

Power Rating (Watt)

Input Current

Mounting Orientation

Mount Type

• Wall-mountable
• Rack-mountable

Placement

Rack Height

Cord Length

Height

Width

Depth

Weight (Approximate)

Package Contents

• PDUV20HVL6-72 38-Outlets PDU
• 38 x Plug-lock Inserts
• Mounting Hardware
• Owner’s Manual

Additional Information

ENVIRONMENTAL

• Storage Temperature Range: -30°C to °C (-22°F to ?°F)
• Relative Humidity: 5-95% non-condensing
• Operating Elevation: (ft.) 0-10,000
• Operating Elevation: (m) 0-3000

USER INTERFACE, ALERTS & CONTROLS

• Switches: n/a

Certifications & Standards

STANDARDS & COMPLIANCE

• Certifications: Tested to UL60950-1 (USA, Canada), NOM (Mexico)
• Certification Details: Series Number (s) AGIB6672; Safety Standards (Canada) CAN/CSA-C22.2 No. 60950-1:2007 (2nd Ed) ?:2011 :2014; Safety Standards (U.S.) UL60950-1:2007 (2nd Ed) R10.14; Safety Standards (International) IEC60950-1:2005 (2nd Ed):2009:2013

Environmentally Friendly

Environmental Certification

Country of Origin

Limited Warranty
